Air Filtration System Installation in Sunnyvale: Cleaner Air Built for North Texas Buildings

Signs You Need Better Air Filtration

You know your building, so you notice when the air feels off. Fine gray dust may return to desks and shelving a day after they are wiped down. Staff allergy complaints may also get worse indoors than outside. Those are signs of a filtration problem, not a one-time fluke. Buildings along the U.S. 80 corridor in Sunnyvale see this regularly.

• Dust builds up on surfaces within a day or two of cleaning
• Staff or tenants with allergies or asthma feel worse inside the building than outside
• A musty or stale smell comes from the vents when the system starts
• You can see dust or debris around the return vent grille
• The current filter is a thin one-inch type that clogs fast and filters very little

Some newer Sunnyvale buildings are built tight for energy efficiency. That helps your power bill but reduces fresh-air exchange. Anything in the ductwork keeps circulating through the building. Older buildings may still have the basic one-inch filter rack installed with the original system. In either case, a better filter alone may not be the answer. The filtration system must match how your building moves air.

Matching Filtration Equipment to Your Air Handler

Here is the part most building owners never think about: your air handler pushes air through the filter in its path. Install a filter that is too thick or dense, and you choke the airflow. We see it every week. A facilities team buys a high-end filter and drops it into a rack made for a thin one-inch model. Now the system is straining. Facility managers across Sunnyvale run into this more often than they expect.

A media cabinet filter needs room, usually four or five inches of depth. It also needs a properly sealed housing. Some older Sunnyvale buildings have smaller return ducts. A bigger cabinet may need extra sheet metal work to fit correctly. That is not always a problem, but we check before quoting the job rather than after.

So what gets checked?

• Blower motor type, since standard PSC and variable-speed ECM motors handle restriction differently
• Return duct size and static pressure, which show how much resistance the system can handle
• Existing filter rack dimensions compared with the depth of the equipment you want
• Tonnage of your AC and furnace, so filtration matches the airflow demand instead of fighting it

Get this wrong, and you can shorten the blower motor’s life. Get it right, and the whole system moves air more freely. Xtreme Air Services is a Trane Comfort Specialist. That training covers airflow calculations, not just equipment brand names. We see it often enough in Sunnyvale that our techs know what to look for.

When You Don’t Need a Full Installation

Not every dust complaint calls for a full air filtration system installation. Sometimes the fix is much smaller.

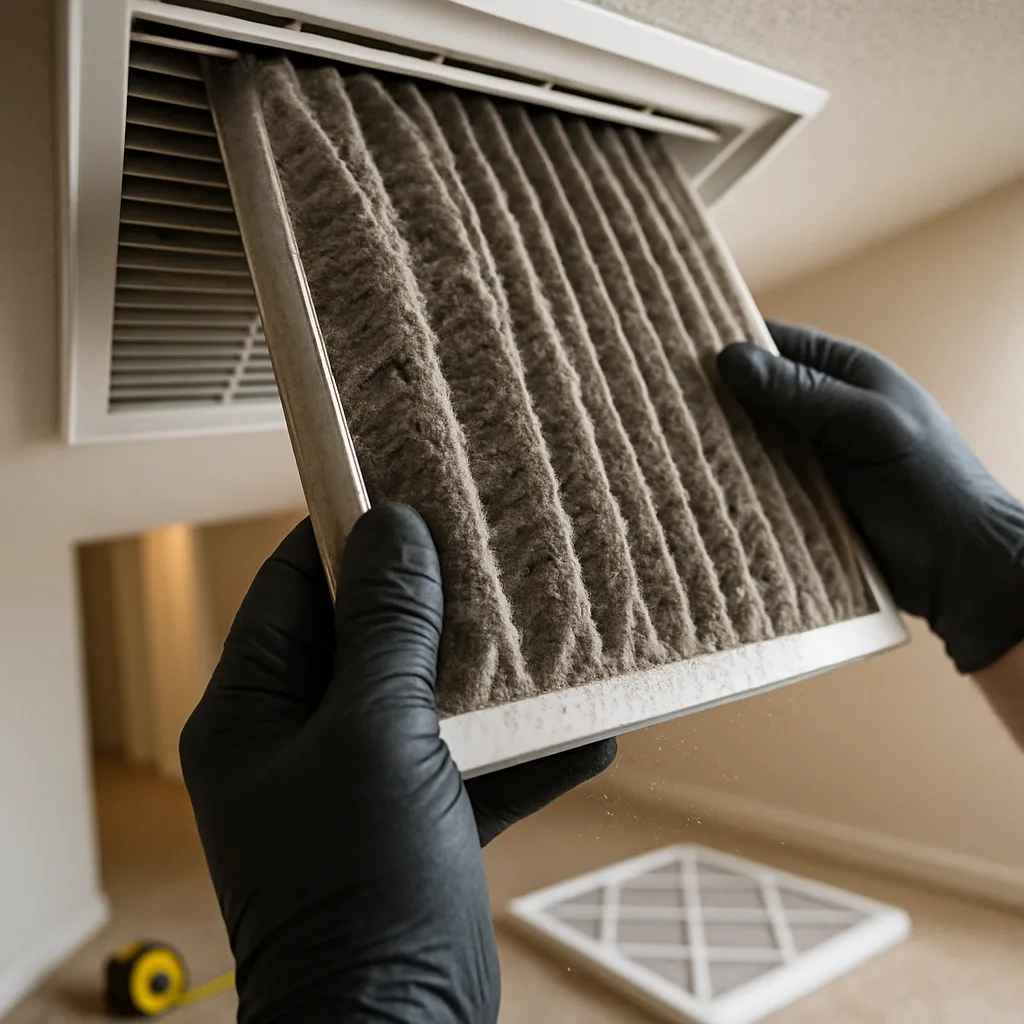

If your one-inch filter is overdue for a swap, that is not an installation job. It is routine air filter replacement and belongs in your regular HVAC maintenance. We check filters during every tune-up. A neglected filter can be the whole reason for weak airflow or a dusty vent. Our trucks stay stocked for Sunnyvale calls like this one.

• Your filter needs replacing, and airflow returns once it is changed
• Only one room feels stuffy or dusty, which usually points to a duct or vent issue
• You had a one-time dust event, such as a remodel or dry summer, instead of an ongoing air quality problem
• Your ductwork has leaks or damage that need sealing first, since filtration cannot stop dirty ducts from feeding dust back into the air

How do you know the difference? Ask whether the problem returns soon after a filter change. It may also keep building for months regardless of the filter you use. That is usually where the line falls. That makes it one of the more common jobs we take in Sunnyvale.

A filtration upgrade cannot repair leaking ducts or equipment undersized for your building’s square footage. We will tell you if that is your situation, even when the right answer is a smaller job. We cover Sunnyvale and the nearby towns along U.S. 80 six days a week.

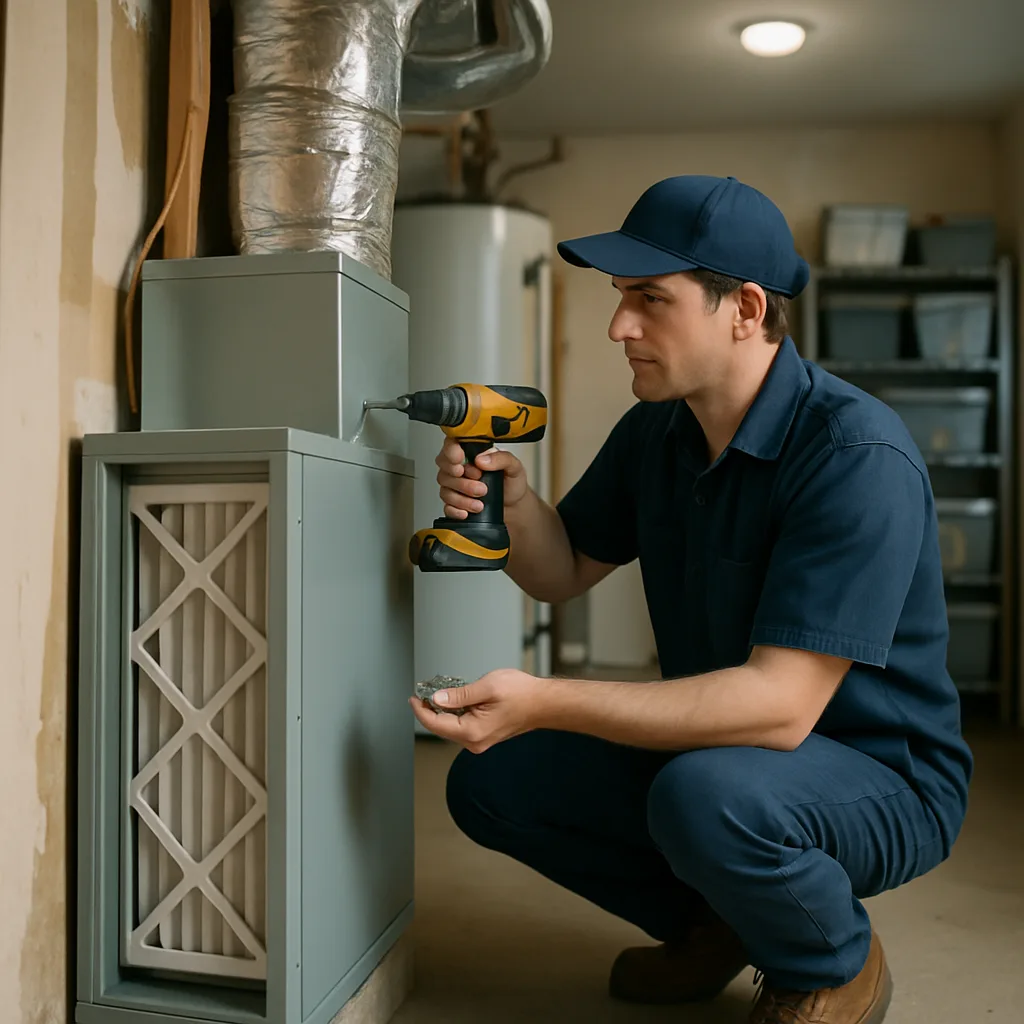

What to Expect During Installation and Airflow Testing

Installation day is not complicated, but the work follows a set order. We do not bolt a filtration unit onto your system and walk away. Each step matters because rushed connections can cause airflow problems. Most of the properties we handle this for are right here in Sunnyvale.

• We check your existing ductwork and connections to confirm the new system fits without forcing it.
• We power down and remove the old filter housing or unit, then haul it away.
• We install the new air filtration system using your existing duct connections.
• We seal every joint tightly. Gaps let unfiltered air bypass the new equipment.
• We start and test the system to confirm it powers on and cycles correctly.

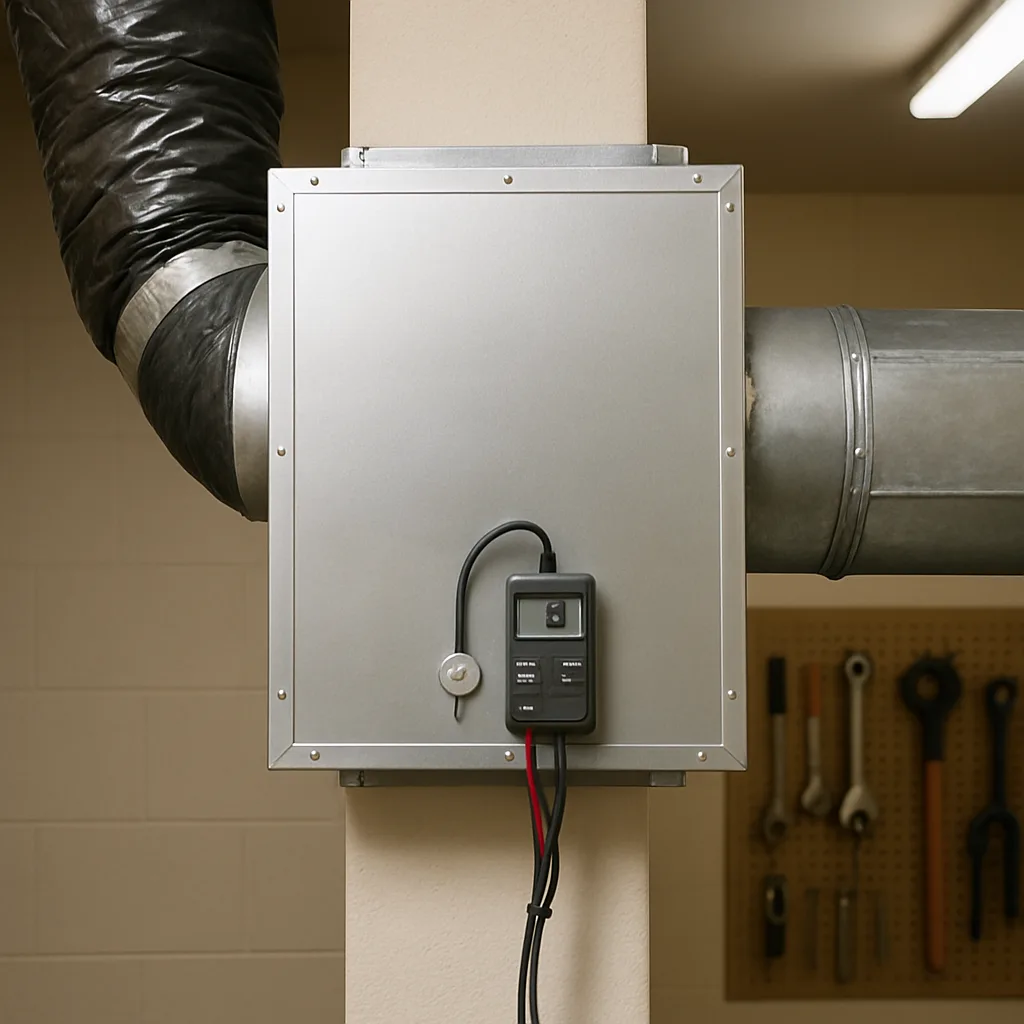

• We check airflow at the vents to confirm the added filtration is not choking your system.
• We explain the new setup before leaving, including filter changes and any indicator lights.

The final airflow check is not optional. A filtration system that is too restrictive can drag down your whole HVAC system. You may see higher bills, shorter equipment life, and a system that runs without catching up. We have seen buildings run the wrong unit for years, with staff wondering why the back offices never cool down. Our team matches filtration equipment to your system’s airflow capacity, not only the available space.

Most jobs wrap up in a single visit.

How Air Filtration Installation Pricing Works

Nobody wants to hear a price pulled out of thin air, so here is how pricing works. Air filtration system installation costs depend on your equipment, ductwork, and building construction. A standard job may use existing connections without major changes. A setup requiring new wiring or ductwork costs more. Typical jobs run between six hundred and twenty-five hundred dollars. Most standard installations fall between nine seventy-five and seventeen hundred dollars.

• Equipment size and efficiency, since larger buildings and higher-MERV media cost more
• The brand and model you pick for your air filtration system
• How easily we can reach your existing ductwork or mechanical space
• The condition of your current ductwork and wiring
• Any code upgrades or permits required by your city
• Custom fabrication when your ducts need a nonstandard fit

A standard installation includes the equipment, professional installation, startup, testing, and removal of your old unit. It excludes duct, electrical, or plumbing changes, code corrections, and permits unless listed upfront. We charge a small service call fee between twenty-six and ninety-nine dollars. If you move forward with us, that fee is credited toward your job. The visit is not wasted money either way.

We offer flexible financing on qualifying installations, so a larger job does not have to hit your budget all at once.
