Variable Air Volume System Install in Sunnyvale: Zoned Comfort for Commercial Buildings

Signs a Commercial Building Needs a VAV Upgrade

How do you tell a zoning problem from a dirty filter? Look for a pattern in the complaints. One tenant is freezing while another is sweating, yet both spaces share a rooftop unit that cannot control their airflow separately.

• One or two rooms always run hot or cold, no matter what the thermostat says
• Energy bills climb even though the building’s occupancy has not changed
• A recent buildout or remodel added walls, offices, or suites without new zoning
• The rooftop unit runs constantly or cycles on and off far more than it should
• Tenants complain about stale air in interior rooms with no outside wall

We often see this in Sunnyvale buildings that began as open warehouses or single-tenant spaces and were divided into smaller offices. The rooftop unit was sized for one large zone, not six small ones. Those mismatches leave the system fighting itself all day.

Not sure whether your building fits this pattern? Have the ductwork and controls checked before assuming you need a whole new unit.

Single-Tenant Spaces Need Zoning, Not a VAV System

Here is the honest answer: if you run a small single-tenant space in Sunnyvale, you almost certainly do not need a true variable air volume system.

VAV is built for large buildings such as offices, schools, and multi-tenant retail spaces. It uses a central air handler and zone boxes that adjust airflow based on demand. That setup works when dozens of rooms have very different heating and cooling loads at the same time. A small building does not work that way. Even in a two-story suite, a hot upper floor and a cold ground floor point to a comfort problem rather than a commercial airflow problem.

When an owner asks about VAV, what they usually want is even temperatures from space to space. That calls for a zoning system, not a commercial installation. Zoning uses dampers in your existing ductwork and a control panel connected to multiple thermostats, one for each zone. It addresses uneven comfort with far less equipment and labor than a true VAV system requires.

How do you know which fits? Ask whether one system serves a single occupant, or whether a shared mechanical setup serves multiple tenants or departments. A single occupant needs zoning. If you manage a shared building, commercial VAV may genuinely apply.

We would rather tell you that up front than sell you equipment the building was never designed for.

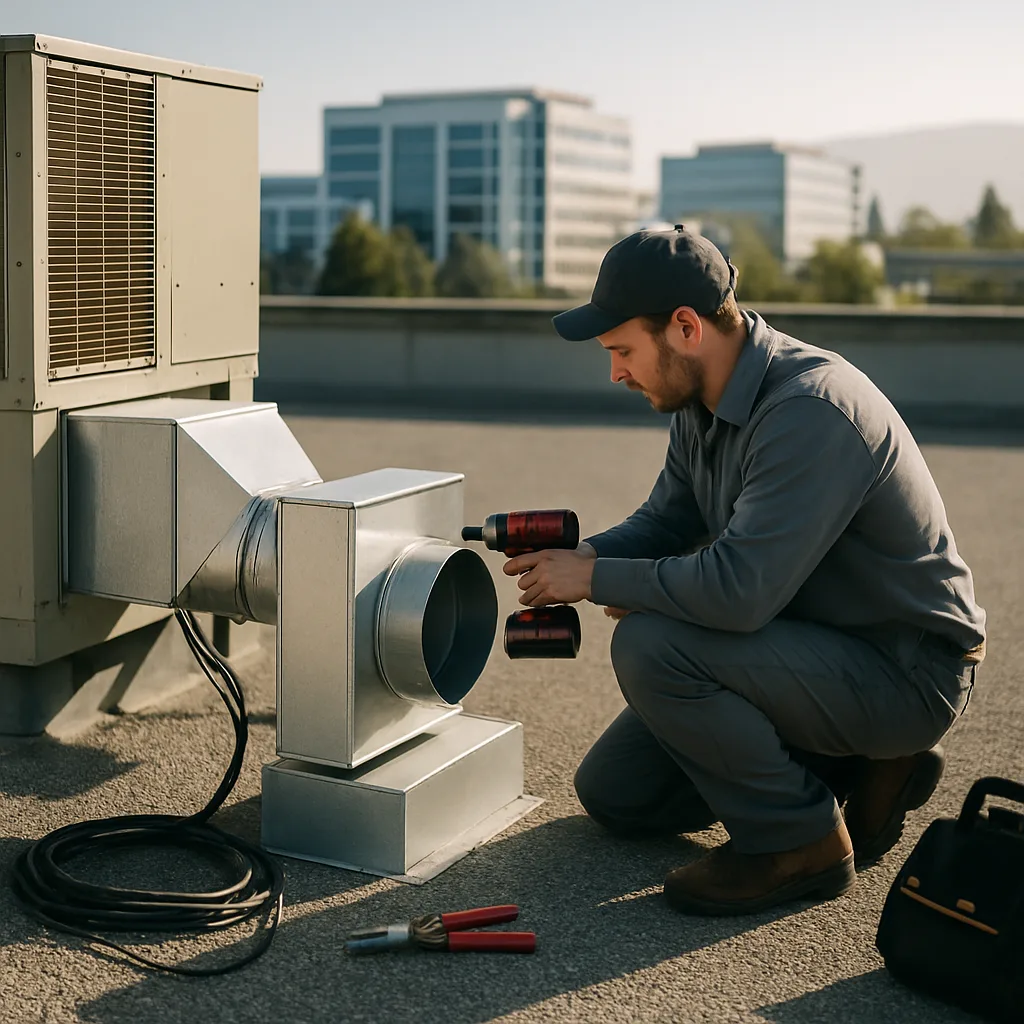

What a VAV Installation Project Involves

This kind of project is not a simple equipment swap. It has several steps. Skipping one can leave a building with hot offices and cold conference rooms six months later.

• We start with a load calculation for each zone, not just the whole building. A zone box sized incorrectly can starve one room while flooding another with air.
• Next comes the ductwork connection. We check the size and condition of existing trunk lines and branch runs before connecting the new boxes.
• Each zone box gets its own damper actuator. It can then open and close in response to its signal without fighting the rest of the system.

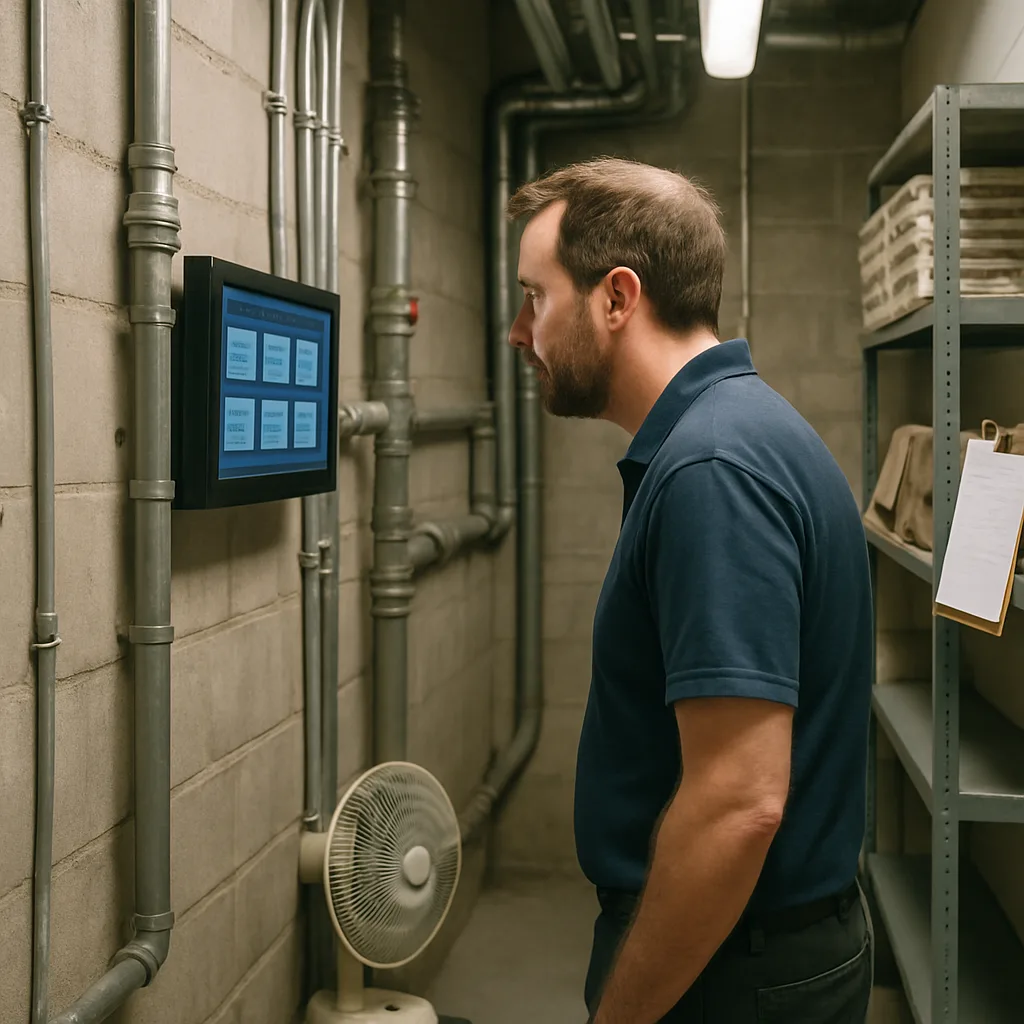

• We install new control wiring or connect the boxes to the building automation system. This lets each zone communicate with the thermostat that controls it.

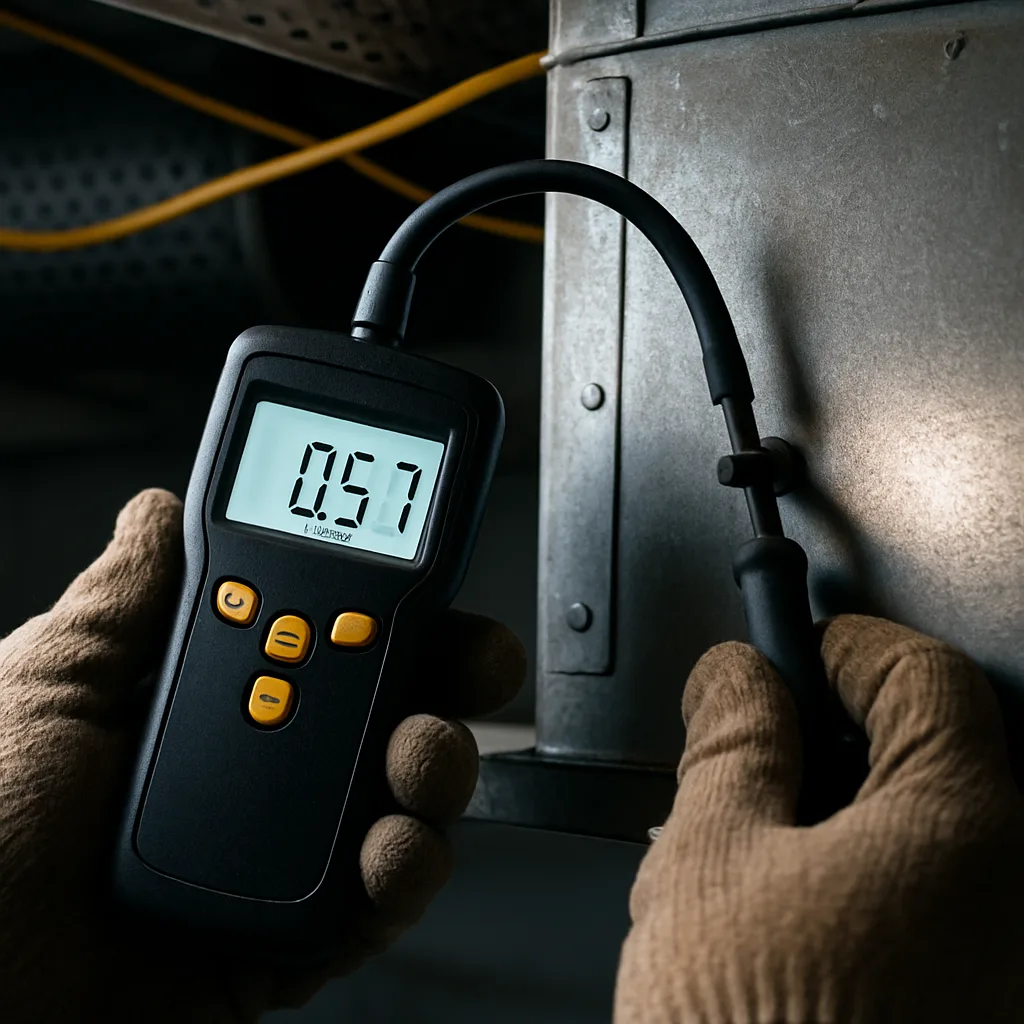

• We then balance the whole system and adjust airflow at every box until each zone meets its design numbers.
• Startup and testing come last. We run the system under real operating conditions rather than performing a quick power-on check.

The balancing step is where many installations fall apart. When we are called to correct another contractor’s work, the boxes often were not balanced correctly the first time.

For a straightforward job using existing connections without major modifications, the quoted work covers equipment, materials, professional installation, startup, and testing. It also includes hauling away the old unit.

Duct changes, electrical work, plumbing modifications, and permits are handled separately when your building needs them. We will walk through the space with you first. You will know what the job includes before anyone touches a duct.

VAV Installation for Sunnyvale-Area Commercial Buildings

Many commercial buildings around Sunnyvale are single-story offices, retail strips, and light industrial spaces. They are not ten-story towers with mechanical rooms on every floor, and that difference matters. A zoned system in a local building usually connects one or two rooftop units to several zone boxes rather than a large central plant.

Installing this kind of system involves more than adding dampers. Every zone box needs control wiring, a duct connection, and a thermostat that communicates with the building’s control system. Skip one step and one zone may run hot while another freezes.

• Sizing each zone box for the square footage and use of its room or suite
• Running new low-voltage control wiring from each box to the central controller
• Connecting the system to the rooftop unit’s static pressure and airflow settings
• Testing and balancing every zone before we call the job done

We have worked in older Sunnyvale buildings where single-zone ductwork needed extra branch runs before zoning could work properly. We have also worked in newer buildings where the needed structure was already in place. In either case, Xtreme Air Services is licensed and insured for commercial mechanical work. You are not relying on someone learning as the project moves along.

Not sure whether your building’s ductwork can support VAV? That is a fair question, and we answer it on site rather than guessing over the phone.

How Commercial VAV Installation Pricing Works

Pricing for this kind of project is not a flat number you can find online because every building is different. Duct runs, zone count, and existing controls all affect the cost. For jobs across Sunnyvale and the wider DFW area, the typical range is ten thousand to seventy five thousand dollars. The final price depends heavily on the building’s size and the project’s scope.

Most calls involve a standard like for like installation using the existing connections, without major rework. That type of job usually costs between twenty three thousand and forty nine thousand dollars. The price covers equipment, materials, and the labor needed for installation, startup, and testing.

• Equipment size, capacity, and efficiency rating account for much of the cost difference
• The brand and model of the zone boxes and controls
• How easy or difficult it is to reach the ductwork and mechanical space
• The condition of your existing ductwork and wiring
• Any required code upgrades or custom sheet metal fabrication

The price includes equipment, standard connections, startup, testing, and removal of the old unit. Duct modifications, electrical work, plumbing changes, code corrections, and permits are separate unless listed in advance. That way, there are no surprises on the invoice.

We charge a service call fee of twenty six to ninety nine dollars. If you move forward with Xtreme Air Services, that amount is credited toward the job. Flexible financing is available on qualifying installations, so a larger project does not have to hit your budget all at once.
